Tiller (Cultivator)


FARM CULTIVATOR BCM-230 & BCM-280
1 & 2 ROW RIGID SHANK CULTIVATOR
Field-cultivator-3-point-cultivator-tractor-cultivator-soil-cultivators two-row-rigid-cultivator-1-row-rigid-shank-cultivator-2-row-rigid-shank-cultivator


FIELD CULTIVATOR, 3 POINT CULTIVATOR, TRACTOR CULTIVATOR, SOIL CULTIVATORS, TRACTOR TILLER, FARM CULTIVATOR, SPRING LOADED CULTIVATOR, TYNE CULTIVATOR, SPRING TYNE CULTIVATOR.RIGID SHANK CULTIVATOR

Brohawk: – We are the manufacturer, exporter, supplier, producer of Agriculture equipment -Spring loaded cultivator. Brohawk field cultivators are suitable in stone and root obstructed soil to break up soil, rip weeds and stir soil to prepare seed beds. It is designed for toughest operations to prepare seeds beds quickly and economically. When one tine strikes a hidden object, the other continues to work at the correct depth. Spring loaded tines fixed to the immensely strong main frame cannot move or strain out of position. Our high quality cultivators range in size, number of shanks, and rigidity for different soil type.

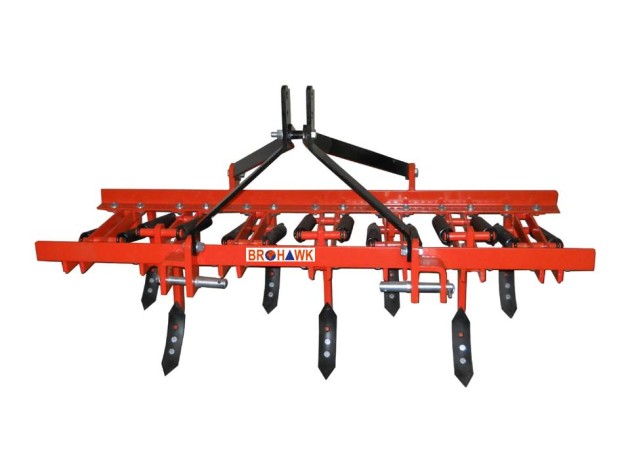

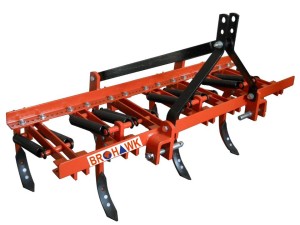

CULTIVATOR BC-230 (MEDIUM DUTY)

cultivator-tiller-tractor-tiller-tractor-cultivator-tractor-use-cultivator

FARM CULTIVATOR BCM-230 SPECIFICATION:
CODE
5 TINE BC-230
7 TINE BC-230
9 TINE BC-230
11 TINE BC-230
  Angle Channel
65 x 8 mm 65 x 8 mm 65 x 8 mm 65 x 8 mm
Spring
10 mm WD         50 mm OD       28.5 Coils 10 mm  WD             50 mm OD             28.5 Coils 10 mm WD              50 mm OD             28.5 Coils 10 mm WD              50 mm OD             28.5 Coils
Tine forged
50 x 20 mm 50 x 20 mm 50 x 20 mm 50 x 20 mm
Pairs  (Flat)
50×8 mm 50×8 mm 50×8 mm 50×8 mm
Anchor Pin
22 mm 22 mm 22 mm 22 mm
Nuts
High Tensile High Tensile High Tensile High Tensile
Frame Bolt
1/2 x 1-1/4 1/2 x 1-1/4 1/2 x 1-1/4 1/2 x 1-1/4
Tine Bolt
5/8 x 2” 5/8 x 2” 5/8 x 2” 5/8 x 2”
Linkage
50 x 12 mm (rear)  50 x 12 (front) 50 x 12 mm (rear)   50 x 12 (front) 75 x 12 mm (rear) 50 x 12 (front) 75 x 12 mm (rear)  50 x 12 (front)
Shovel
8 mm En-45 8 mm En-45 8 mm En-45 8 mm En-45
Length
1160 mm 1670 mm 2150 mm 2440 mm
Width
850 mm 850 mm 850 mm 850 mm
Height
585 mm 585 mm 585 mm 585 mm
Tiller Pin
2 mm 22 mm 22 mm 25 mm
Weight
120 kg 145 kg 200 kg 240 kg

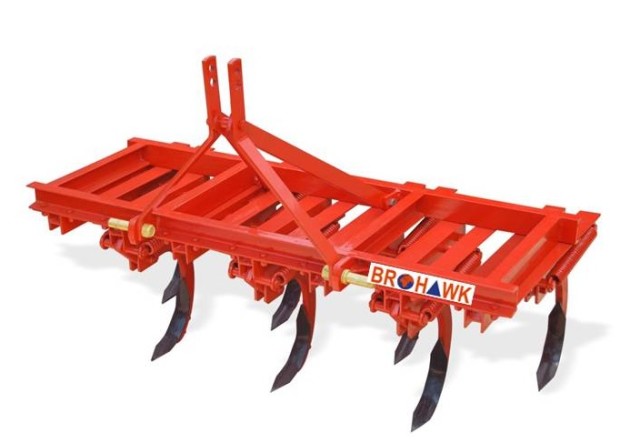

 CULTIVATOR BC-280 (HEAVY DUTY)

tractor-cultivator-agriculture-cultivator-farm-cultivator

FARM CULTIVATOR BCM-280 SPECIFICATION:
CODE
13 TINE BC-280
13 TINE BC-280
15 TINE BC-280


Angle Channel
75 x 40 mm 75 x 40 mm Foldable 75 x 40 mm Foldable
Spring
10 mm WD,                  50 mm OD                  28.5 Coils 10 mm WD,                  50 mm OD                  28.5 Coils 10 mm WD                 50 mm OD                   28.5 Coils
Tine forged
50 x 20 mm 50 x 20 mm 50 x 20 mm
Pairs  (Flat)
50×8 mm 50×8 mm 50×8 mm
Anchor Pin
22 mm 22 mm 22 mm
Nuts
High Tensile High Tensile High Tensile
Frame Bolt
1/2 x 1-1/4 1/2 x 1-1/4 1/2 x 1-1/4
Tine Bolt
5/8 x 2” 5/8 x 2” 5/8 x 2”
Linkage
75 x 12 mm (rear)        50 x 12 (front) 75 x 12 mm (rear)       50 x 12 (Front) 75 x 12 mm (rear)       50 x 12 (front)
Shovel
8 mm En-45 8 mm En-45 8 mm En-45
Length
2920 mm 2950 mm 3210 mm
Width
850 mm 850 mm 850 mm
Height
585 mm 585 mm 585 mm
Tiller Pin
25 mm 25 mm 25 mm
Weight
253 kg 450 kg 500 kg



RIGID SHANK CULTIVATOR

ONE ROW 5 SHANK RIGID CULTIVATOR,  TWO ROW 9 SHANK RIGID CULTIVATOR, STIFF SHANK CULTIVATOR, ONE ROW RIGID CULTIVATOR, TWO ROW RIGID CULTIVATOR, 1 ROW RIGID SHANK CULTIVATOR, 2 ROW RIGID SHANK CULTIVATOR.

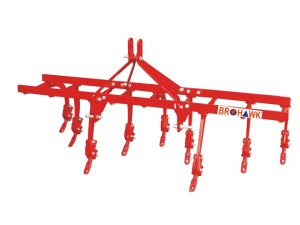

 2 ROW 9 SHANK RIGID SHANK CULTIVATOR
 1 ROW 5 SHANK RIGID SHANK CULTIVATOR
 one-row-5-shank-rigid-cultivator-two-row- 9-shank-rigid-cultivator-stiff-shank-cultivator-one-row-rigid-cultivator  cultivator-1-row-cultivator-one-row-5-shank

 Brohawk:- We are the manufacturer, exporter, supplier, producer of Agriculture implements- Rigid shank cultivator. Rigid shank cultivators are also called as stiff shank cultivators. These cultivators are available in single row and double row cultivators. There are 5 shank in single row cultivators and 9 shanks in double row cultivators. This rigid cultivators are made of 2 ½ “ x 2 ½ angle and its shanks are made of special alloy steel SG Iron. This cultivator has feature of easy adjustable row width as per the requirement. No points are included in this cultivator because any kind of point can be installed on it as a tip for different user. This cultivator has a point mechanism through which you can adjust the tapper of the point from normal tilling to harsh tilling. It comes with 3 point hitch Cat 1. Bearing its flat surface on the top, any kind of attachment can also be installed over its top.



  RIGID SHANK CULTIVATOR SPECIFICATION:
DESCRIPTION
ONE ROW CULTIVATOR BRC-S1
TWO ROW CULTIVATOR BRC-S2
FRAME ANGLE SIZE
65 x 8 mm 65 x 8 mm
 LENGTH
1170 mm 2160 mm
WIDTH
890 mm 890 mm
HEIGHT
1070 mm 1070 mm
 TINES
63 x 22mm SG IRON 63 x 22mm SG IRON
CUFFS
SG IRON SG IRON
STEM
Dia 30mm SG IRON Dia 30mm SG IRON
FRONT LINKAGE
75 x 12 mm 75 x 12 mm
BACK LINKAGE
50 x 12 mm 50 x 12 mm
IMPLIMENT PIN
22 mm 22 mm

The weight and working data contained in this table are supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/ improvement.
