BROHAWK – We are the manufacturer, exporter, supplier, producer of implement pin, links pin, top link pin, tiller pin, linkage part pins, 3 point hitch pins.
LYNCH PIN
LYNCH PIN SPECIFICATION:
Code |
D mm |
A mm |
B mm |
C mm |
E mm |
Ø Shaft mm |
BE-0202 |
4.5 | 45 | 9 | 29 | 2.5 | From 10 upto 15 |
BE-0203 |
5 | 48 | 8.5 | 35 | 2.5 | From 14 upto 18 |
BE-0204 |
6 | 55 | 8.5 | 36.5 | 3 | From 18 upto 22 |
BE-0205 |
8 | 54 | 9 | 36.5 | 3 | From 24 upto 30 |
BE-0206 |
9 | 55 | 11 | 36.5 | 3.5 | From 26 upto 32 |
BE-0207 |
10 | 56 | 12 | 40 | 3.5 | From 28 upto 36 |
BE-0208 |
11 | 56 | 11 | 40 | 3.5 | From 30 upto 38 |
TOP LINK PINS
TOP LINK SPECIFICATION:
| Code | A mm | B mm | C mm | D mm | E mm | L mm |
| BE-0261 | 110 | 95 | 15 | 12 | 19 | |
| BE-0262 | 120 | 103 | 18 | 12 | 19 | 138 |
| BE-0263 | 202 | 184 | 19 | 12 | 22 | 221 |
| BE-0264 | 120 | 95 | 15 | 12 | 25.4 | 135 |
| BE-0265 | 145 | 130 | 20 | 12 | 28 | 165 |
| BE-0266 | 145 | 125 | 20 | 12 | 31 | 165 |

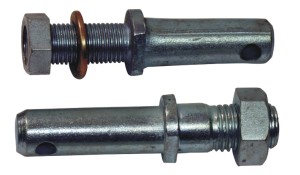

TILLER PINS/ IMPLEMENTS PINS

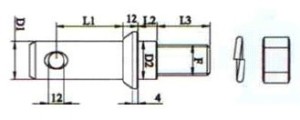

TILLER PIN SPECIFICATION:
Product No. |
D1 |
D2 |
L1 |
L2 |
L3 |
BE-0316 |
22 | 20 | 50 | 8 | 40 |
BE-0316A |
22 | 22 | 50 | 14 | 40 |
BE-0316B |
22 | 28 | 50 | 14 | 40 |
BE-0316C |
22 | 28 | 45 | 8 | 40 |
BE-0317 |
28 | 22 | 60 | 14 | 45 |
BE-0317A |
28 | 28 | 55 | 14 | 45 |
BE-0317B |
28 | 28 | 60 | 14 | 45 |
