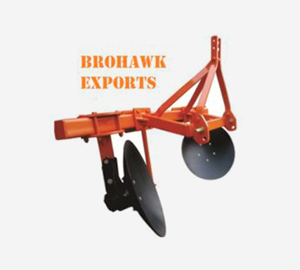

Ridger, One and Two Row | Brohawk Exports

One & Two Row is designed for efficient and precise ridge formation, making it ideal for a wide range of crops. Engineered with robust construction and high-quality materials, it ensures durability and reliable performance even in challenging field conditions.

This implement helps improve soil aeration, water management, and crop alignment, contributing to enhanced productivity and uniform crop growth. Suitable for modern farming needs, it offers smooth operation and easy compatibility with tractors.

Ridger One & Two Row Specification:

Description	BHDR-2	BHDR-4	BHDR-6
FRAME (in mm)	M.S Square Tubular Pipe	M.S Square Tubular Pipe	M.S Square Tubular Pipe
AXLE TYPE	Spindle	Spindle	Spindle
NO. OF DISC	2	4	6
TYPE OF DISC	Plain/Notched (Optional)	Plain/Notched (Optional)	Plain/Notched (Optional)
DISC DIAMETER (in mm)	660 x 6mm (Boron Steel)	660 x 6mm (Boron Steel)	660 x 6mm (Boron Steel)
MAX WIDTH BETWEEN RIDGES (in mm)	1000 mm	1000 mm	1000 mm
WORKING DEPTH (Max> in mm)	330 (Depends upon the soil conditions)	330 (Depends upon the soil conditions)	330 (Depends upon the soil conditions)
BEARING HUBS	2	4	6
WEIGHT (in Kgs. approx.)	195	425	650
TRACTOR POWER (in HP)	50-65	65-90	90 & above
