Reversible Plough

agricultural-implements-reversible-plough-reversible-plow-agricultural- equipment-reversible-plough

AGRICULTURAL IMPLEMENTS, REVERSIBLE PLOUGH, REVERSIBLE PLOW, AGRICULTURAL EQUIPMENT-REVERSIBLE PLOUGH.

Brohawk – We are the manufacturer, exporter, supplier, producer of Agricultural equipment-Reversible plough.



FEATURES:
  • Reversible plough automatic furrow changing system.
  • Easy to operate. Easy to attach and detach.
  • Designed for toughest ploughing with outstanding presentation.
  • Wear resistant shear bar and shear blade used.
  • Strong and sturdy main frame.
  • Fuel and time saving device for large ploughing operations.
  • Does not leave spaces in soil between soil upturns.
  • Maintains the moisture holding capacity of the soil and eliminates.

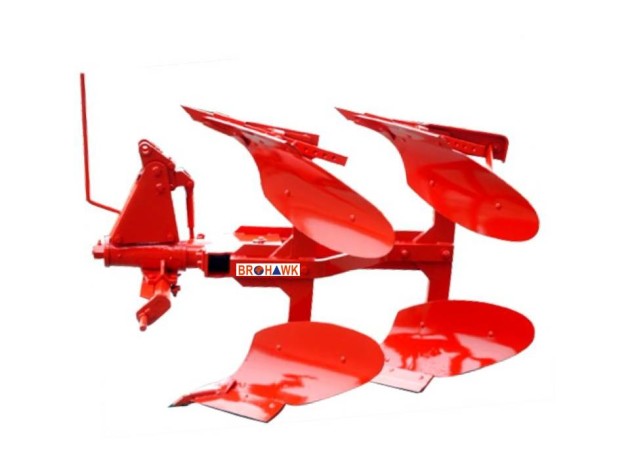

REVERSIBLE PLOUGH

reversible-plough-2-furrow-reversible-plough-3-furrow-reversible-plow

REVERSIBLE PLOUGH SPECIFICATION:
REVERSIBLE PLOUGH DESCRIPTION
DETAIL IN MM
Over all length
1725
Over all width
1100
Over all height
1170
No of furrows
4(2+2)
Weight
300.00 kg App.
Under frame clearance
535
Max. Cutting depth
305
Max cutting width
635
Req. H.P
45 to 65

The weight and working data contained in this table are supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/ improvement.
