Disc Harrow Parts



 Harrow Disc Bearing Spool
Harrow Disc Spacer Spool
DISC HARROW AXLE
 disc-harrow-bearing-spool-ribbed-bearing-spool  spool-ribbed-spacer-spool-harrow-disc-spacer-spool  harrow-axle-mounting-trailling-type-disc-harrow-axle





BEARING SPACER SPOOL, PLAIN SPACER SPOOL, HARROW DISC BEARING SPOOL, HARROW DISC SPACER SPOOL, RIBBED BEARING SPOOL, RIBBED SPACER SPOOL.


Brohawk –
We are the manufacturer, exporter, supplier, producer of Agriculture machinery part-Harrow disc bearing spool and Harrow disc spacer spool. We are manufacturing Harrow disc spacer spool and bearing spools with square centre hole for 1” axle. We manufacture Harrow disc Bearing spool and Harrow Disc Spacer Spool of size 7.5” and 9”. All our Harrow disc bearing spools and Harrow disc spacer spool are made with graded C.I. Casting for longer life of Disc Harrow. Even we can customize For OEM’s and dealers.



HARROW DISC BEARING SPOOL

disc-harrow-bearing-spool-ribbed-bearing-spool

HARROW DISC BEARING SPOOL SPECIFICATION:-

Harrow disc bearing Spool is a complete housing with spool helps in fixing the axle and rotation of the discs. Bearing spool is 7″-1/2″  in length with 1 “ square hole for 1 “ axle.  All set includes

Half housings 5”   – 2 nos

Spool 7″-1/2″       –  1 nos

Bolt ½ x 5”            –  2 nos

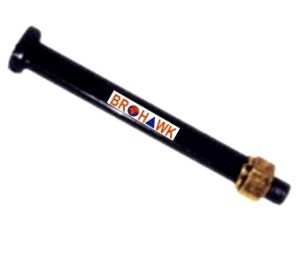

Disc Harrow Axle:

                             axle-for-disc-harrow-harrow-axle-disk-harrow-axle-offset-disc               disc-harrow-axle-disc-harrow-parts-axle-for-disk-harrow

DISC HARROW AXLE SPECIFICATION:
Dim. A
Dim. B
Dim. C
Dim. D
Thread E
25 mm 118” 1/2″ 1-1/2″ 1″ UNC
30 mm 118” 1/2″ 1-1/2″ 1″ UNC
32 mm 118” 1/2″ 1-1/2″ 1″ UNC
38 mm 118” 1/2″ 2″ 1-1/2″ UNC

We Brohawk can manufacture other sizes as per the customer requirement.
